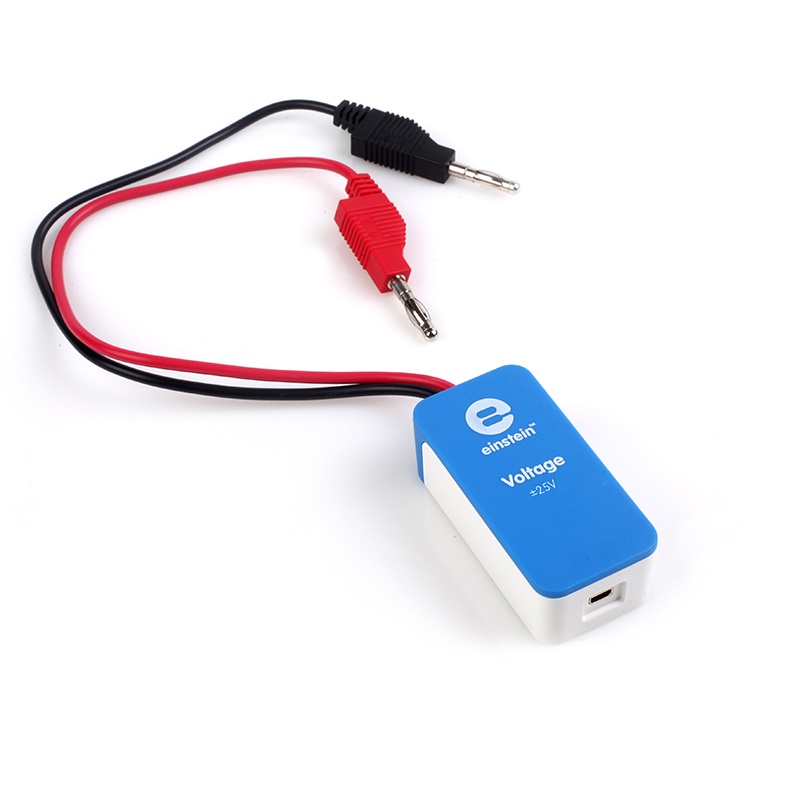

Einstein Voltage Sensor (±25V)

Einstein Voltage Sensor (±25V)

Einstein Voltage Sensor (±25V)

This medium range sensor can measure direct and alternate voltage current, EMF and internal resistance, V-I characteristics of a wire, a light bulb and a diode, connections of batteries, resistance of a wire or Ohm’s Law.

Specifications

• Range: ±25 V
• Input Voltage: AC or DC
• Accuracy: ±3 % over entire range
• Resolution (12-bit): 12.5 mV
• Maximum Sample Rate: 20,000 samples per second
• Input Resistance: 250 kΩ
• Maximum Input Voltage: 60 V

Experiments

• Resistors in Mixed Connection

• Specific Heat

Watch the tutorial:

Learn how to calibrate the sensor:
