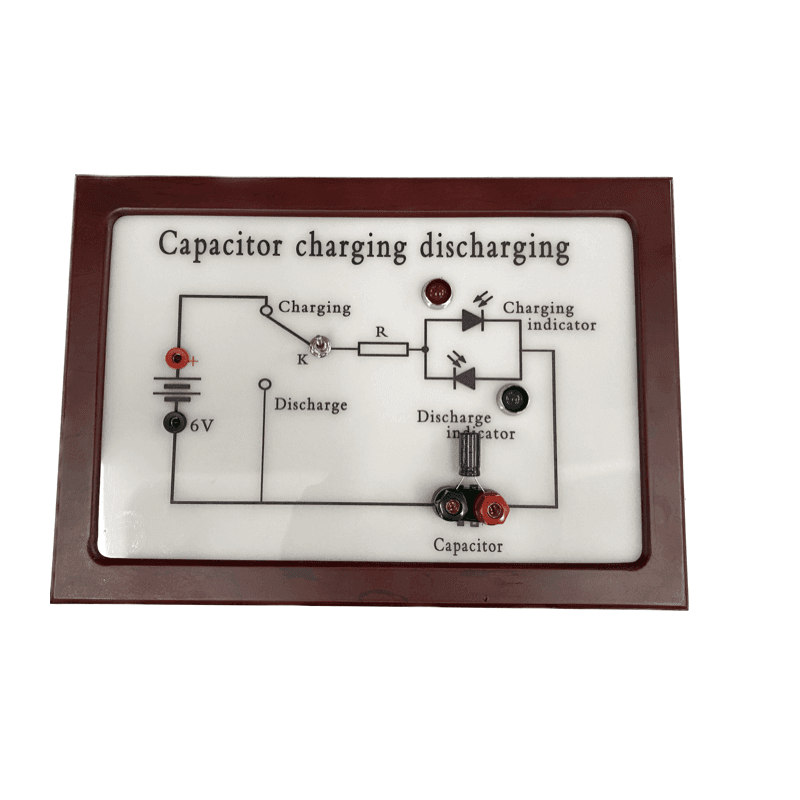

Capacitor Charge Discharge Apparatus

Capacitor Charge Discharge Apparatus

Capacitor Charge Discharge Apparatus

To demonstrate and understand the charging and discharging of a capacitor.

With switch / selector for charging or discharging.

With LED indicators (green for charge indicator and red for capacitor discharge indicator)

With 4mm terminals for use with bananas.

Operates with 6V DC.
