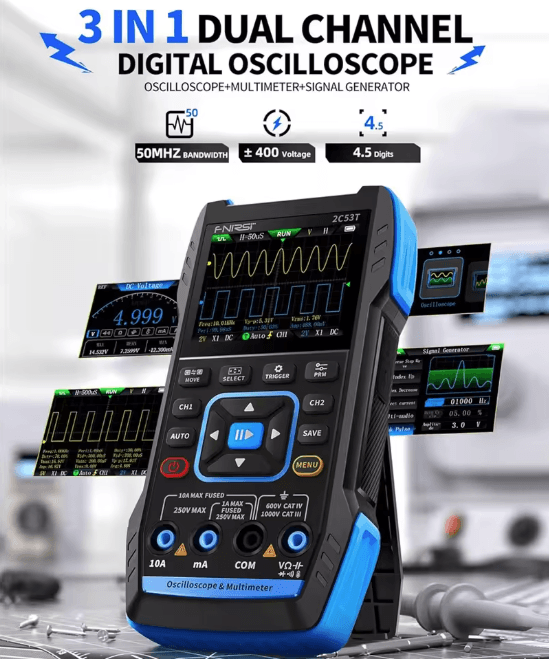

Oscilloscope 3 in 1

FNIRSI-2C53T is a universal and practical three-in-one two-channel digital oscilloscope manufactured by FNIRSI for maintenance and research personnel±.

The multimeter function provides 4.5 liter discharge, true standard readings from 1999, supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode and circuit integrity measurement, making it an ideal multifunctional tool for professionals, factories, schools, hobbyists, or households.

The built-in DDS function signal generator can output 13 kinds of function signals, with a maximum output frequency of 50kHz and a step size of 1Hz. It is equipped with a 2.8-inch high-definition LCD screen with a resolution of 320*240 and a built-in 3000mAh rechargeable lithium battery, with a standby time of up to 6 hours.

Key Features:
1.Fire Protection: Dual ceramic fuses protect the circuit.Intelligent burn protection, overload protection and built-in dual fuses make it safer.
2.Excellent performance: The panel architecture adopts the same high-speed ARM+FPGA+ADC scheme as desktop computers, but the cost is high.
3.Detailed Signal Shape Analysis: Supports advanced functions such as XY mode, marker measurement, afterglow measurement, mathematical operations, etc. It can easily capture abnormal signals.
4.Save and display signals: Just click once to save a screenshot of the letter shape.

Basic parameters:

Product Model: 2C53T
Display: 2.8-inch high-definition
color screen Charging features: Type-C (5V/1A)
Battery: 3000mAh lithium battery.

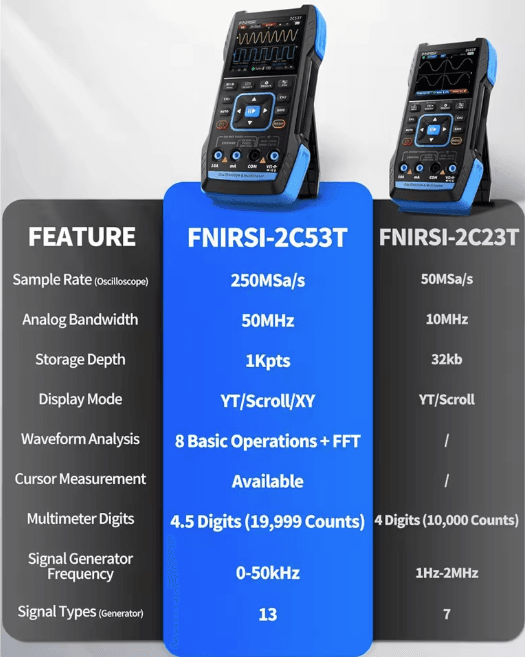

Oscilloscope
Channel Parameters: Dual
Channel Sampling Frequency: 250ms/s
Simulated Bandwidth: 50m (Dual Independent Channel 50m)
Storage Depth: 1000 Point
Impedance: 1 Meter Scan
Range: 10ns to 20s
Vertical Sensitivity: 10mV/Enclosure-10V/Enclosure (x1)
Maximum Measured Voltage: ± 400 V
Trigger Mode: Auto/Normal/Single Player Trigger
Type: Front Ascending, Front Falling Display
Mode: YT/Rolling/XY
Connection Method: AC/DC
Constant: Off, 500ms, 1s, ∞
Math: 8 Basic Operations+BPF
Save Screenshot Signal Form: Supports
Signal Image Export: Supports
Marker Measurement: Supports

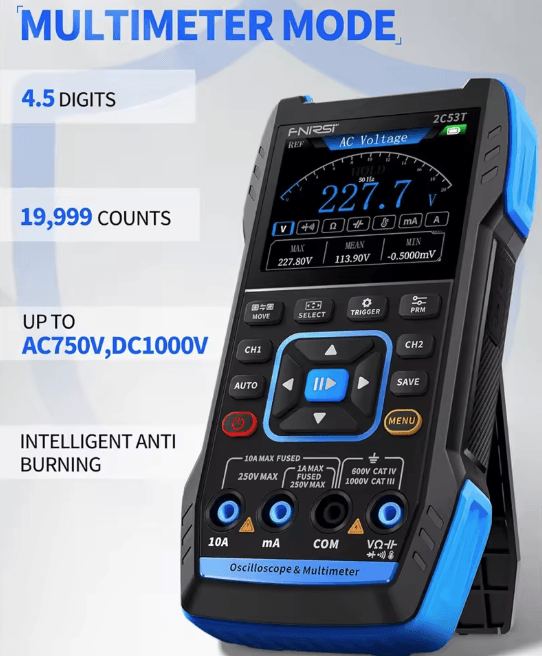

Multimeter
Parameters DC Voltage: 19999V/19999V/199.99V/1000V
AC Voltage: 19999V/19999V/199.99V/750.0V
DC Current: 19999A/199999 mA/19999A/9999A
AC Voltage: 19999A/19999.99 mA/19999A/9999A
Resistance: 19999 Ω/19999 Ω/19999 Ω/19999 Ω, 19999 Ω/19999 Ω
Capacity: 999.9 μ F/99.99 μ F/9999.9 NF/99.99 NF/9999 MF
Temperature: (-55~1300°C)/(-67~2372°C)
Diode: Yes
Continuity Test: Yes
Signal Generator Parameters
13 Signal Shapes: Output Signal Forms: Sine Wave, Rectangular Wave, Saw Tooth Wave, Half-Wave, Full Wave, Positive Rated Wave, Negative Rated Wave, Exponential Growth, Exponential Decay, DC, Multi-Tone, Synchronous Pulse, Lorenz
Wave Output Frequency: 0-50 kHz
Output Amplitude: 0-3V
Output Duty Cycle: 0-100%
