Physics Lab Joule Law Demonstrator

Joule Law Demonstrator (Physics Lab Joule Law Demonstrator)

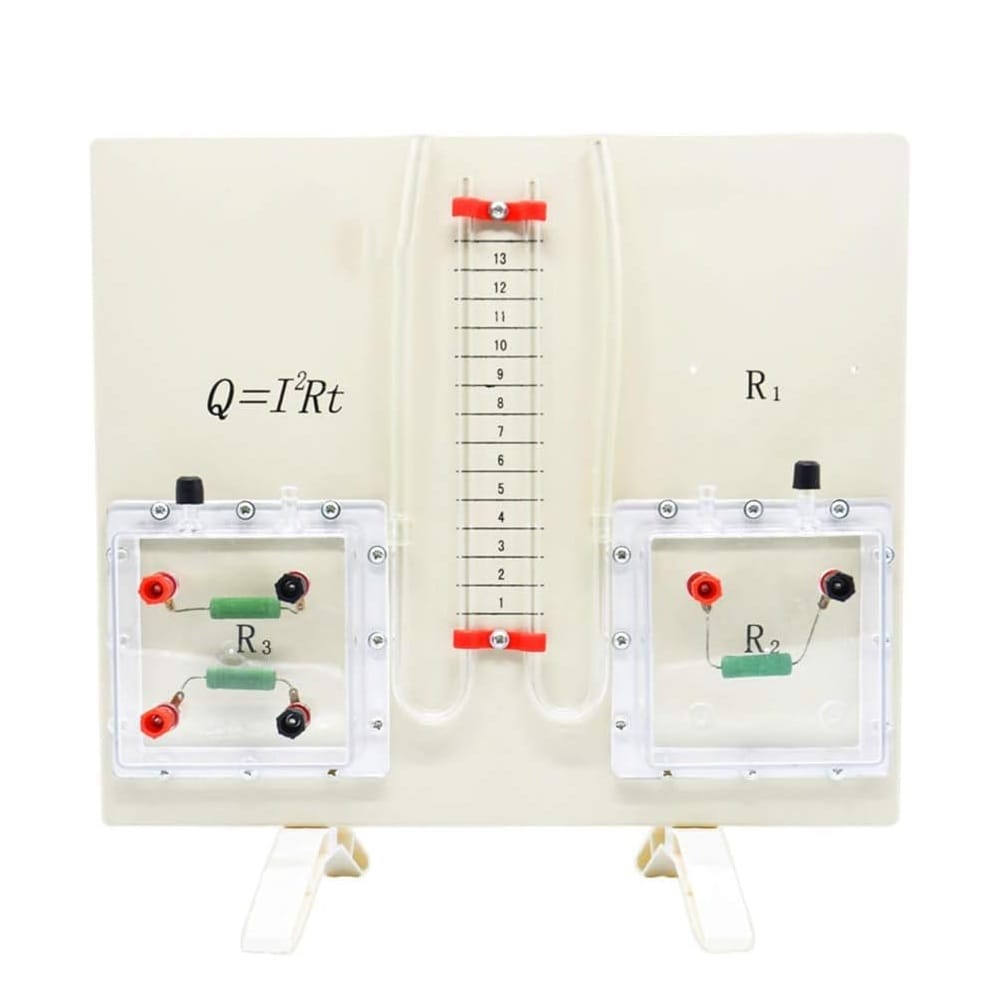

The Joule Law Demonstrator is an educational device used to demonstrate Joule’s Law, which describes the heat produced when electric current flows through a conductor. This device features resistors embedded within transparent containers and tubes, allowing students to clearly observe the heat generated and the temperature change as current passes through the resistors.

The setup is designed to visually demonstrate the phenomenon of heating resistors when current flows through them, making it ideal for use in physics and electrical engineering laboratory sessions. The transparent construction of the containers and tubes enables students to observe the temperature rise and understand the direct relationship between the electrical energy consumed by the resistor and the heat generated.

Features of the Demonstrator:

1. Transparent Containers and Tubes: The resistors are placed inside transparent containers and tubes, allowing students to clearly observe the temperature change by visually monitoring the fluid or surface of the resistor.

2. Resistors: The resistors are designed to provide reliable and controlled conditions for studying heat production when subjected to electric current.

3. Educational Use: The device offers students a visual and practical experience of Joule’s Law, where the heat produced depends on the resistance of the material and the current intensity, following the relation: Q=I2RtQ = I^2 R tQ=I2Rt.

4. Safety: The setup is designed with safety in mind, ensuring that students can observe the phenomenon safely, without the risk of exposure to dangerous temperatures or electrical malfunctions.

5. Visualization of the Phenomenon: The use of transparent materials allows students to see the process in real-time and understand the direct connection between the electrical energy being converted into heat and the rise in temperature of the material.

The Joule Law Demonstrator is an essential tool for understanding the conversion of electrical energy into heat, making it ideal for use in physics and electrical engineering labs and providing an interactive and comprehensible educational experience.
