Arduino Lotus Grove

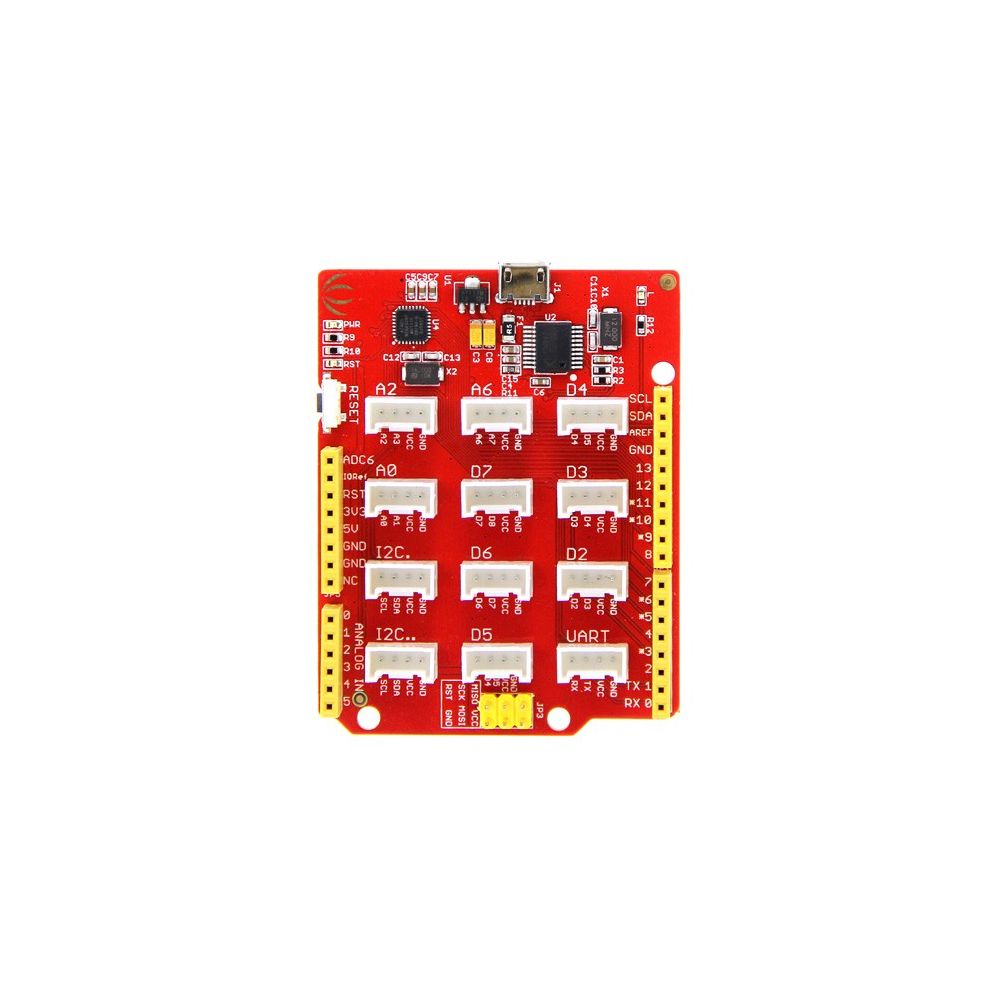

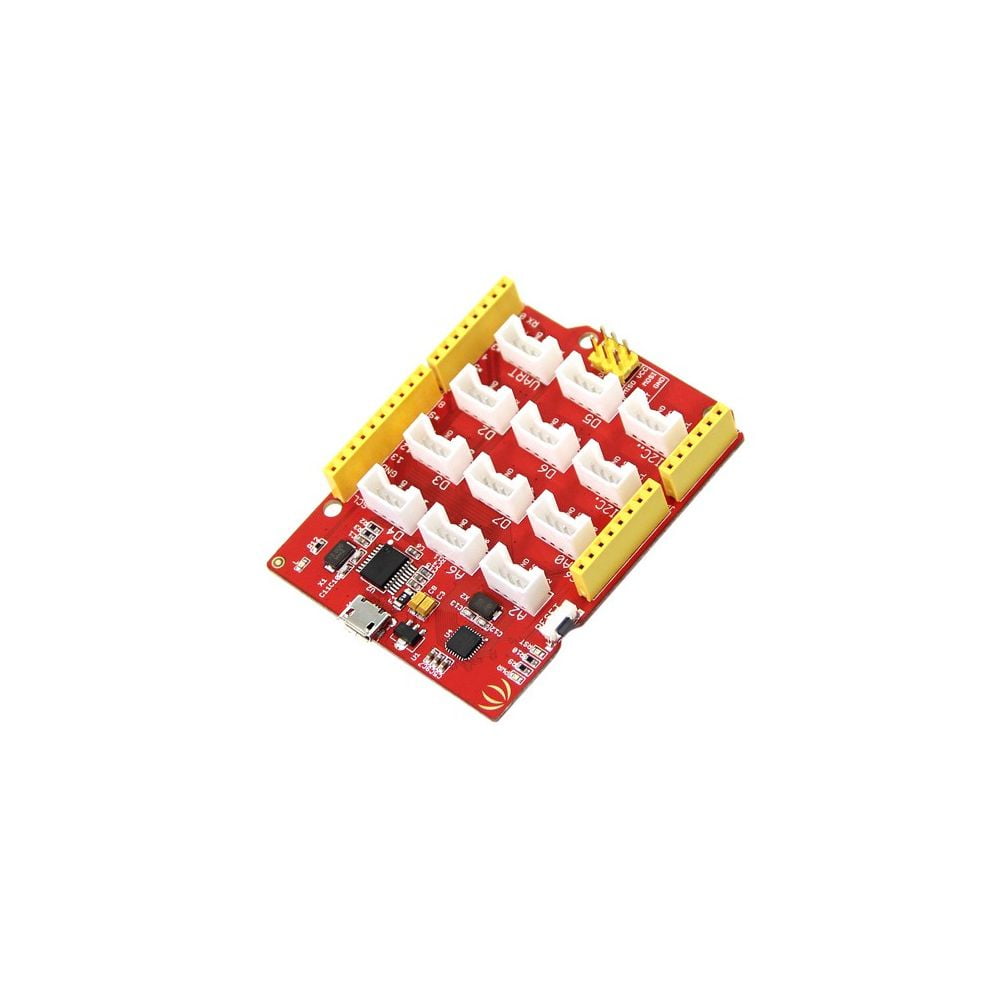

Arduino Lotus Grove is an ATmega328 Microcontroller development board. It is a combination of Seeeduino and Base Shield. It uses Atmel ATMEGA328P-MU and CH340. ATMEGA328P-MU is a high performance, low power 8-Bit AVR Microcontroller. CH340 is an USB bus converter chip that can realize an USB to serial interface. Seeeduino Lotus has 14 digital input/output (6 of which can output PWM) and 7 analog input/output, a micro USB connection, an ICSP header, 12 Grove connections, a reset button.

SPECIFICATION

• Microcontroller: ATmega328P-MU
• Operating Voltage: 5V
• Digital I/O Pins: 14
• PWM Channels: 6
• Analog Input Channels: 7
• DC Current per I/O Pin: 40 mA
• Flash Memory: 32 KB (ATmega328P-MU)
• RAM: 2 KB (ATmega328P-MU)
• EEPROM: 1 KB (ATmega328P-MU)
• Clock Speed: 16 MHz

DOCUMENTS

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
