Laser Light 530 55W
Desktop CO2 Laser Light 530 Cutter & Engraver
Laser cutting is a fast, efficient and non-contact cutting process. Laser cutting machines can cut and engrave a variety of materials.
Laser Light 530 55W
€5.750,00 incl. VAT
Desktop CO2 Laser Light 530 Cutter & Engraver
Laser cutting is a fast, efficient and non-contact cutting process. Laser cutting machines can cut and engrave a variety of materials.
Description
40W/60W
High-quality CO2 red dot laser
20mm
Maximum cutting thickness (acrylic)
500x300mm
Working area (19.6 x 12.5 inches)
4K 16MP
Ultra-high-definition CCD camera
600mm/s
Maximum working speed
≤0.025mm
High-precision repeat positioning accuracy
What Makes the Light 530 Your Perfect Choice?
Powerful operation control modes and design systems
Whether it’s the PC-based laser design system LightMaker or the mobile APP, you can easily realize your countless creative ideas. Combined with the 5-inch full-color high-definition touch panel on the machine, the entire process can be easily and intelligently operated.
High-strength laser head assembly
The highly robust laser head assembly features an optional fully enclosed or semi-open laser head design, ensuring stable operation with a lifespan of up to 9,000 hours. Combined with autofocus and a 20mm laser lift stroke, it can easily achieve fine cutting and engraving.
4K16MP Ultra-high-definition CCD camera
The panoramic 4K 16MP Ultra HD Camera used for image and pattern extraction, multi-point precise engraving, and real-time monitoring of the entire working process. It combines practicality with creativity in one powerful device.
Unlock Materials, Unleash Creativity

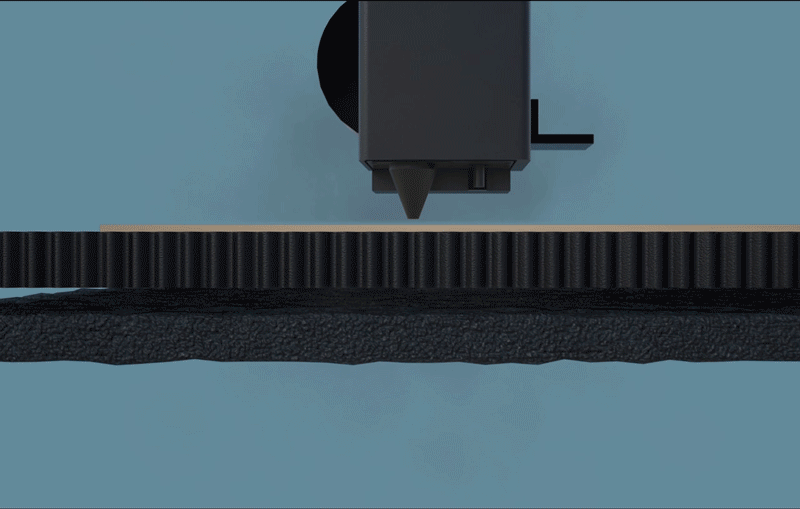

Integrated Exhaust Filtration System
Our all-in-one system integrates filter screens, activated carbon, and a UV ozone layer for powerful smoke and dust removal—no bulky filter boxes, no extra hassle. More eco-friendly. More compact. More freedom for your workspace.
Top Priority Safety Protection
The highest safety tests required by SGS lab, Class I laser products by FDA, and the unique safety & working indicator provide an intuitive and clear understanding of the machine’s operating status.
Take Your Laser Creation to The Next Level
The next-generation Light 530 CO₂ Laser Cutter goes beyond the standard with exceptional performance in safety, usability, and environmental protection. We don’t settle for conventional product models—instead, we respond to the evolving needs of users with bold innovation and continuous upgrades.
Smart Sensor System with Remote Diagnostics
The Light 530 is equipped with an advanced sensor monitoring system that continuously tracks key operational metrics, including processing temperature, water flow rate, water level, and coolant temperature.With the customer’s explicit authorization, our technical support team can securely access the device via a remote diagnostic channel to assess system status. This allows for fast, accurate troubleshooting, minimizes downtime, and keeps your productivity running at full speed.
Light 530 Specifications
Laser typeSealed carbon dioxide glass laser tube
Water cooling system parameters (built-in)
Lifting stroke of laser head≤25mm
Cooling methodBuilt-in water cooling system (active water)
Max material thickness≤22mm
Working voltageDC 24V wind cooling + aluminum plate
Focus methodAuto focus, manual focus
Water tank capacity3.2L
Connection methodSupport USB connection, network connection, WIFI connection
Maximum reach5M
Supported design softwarePs、Ai、CorelDRAW、AutoCAD、 Solidworks etc
Water flow rate1000L/H or external dedicated CW3000 laser chiller (optional)
Supported file formatsJPG、DXF、AI、DST、PNG、BMP、 TIF、SVG etc
Air pump parameters (built-in)
Laser lifetime≤9000 hours
Voltage220V/110V16W
Software operating systemLightMaker(computer & mobile), Lightburn(computer)
Air pressure≥0.05Mpa
Operation control method5-inch LCD touch screen / mobile APP / PC software
Suction system parameters (external integrated)
Machine working noise≤60db
Rated power62w
Drive systemHigh-speed stepper motor + high-precision linear guide + synchronous belt
Airflow280m2/H
Safety featuresInterlock switch, emergency button, working status indicator, water tank high temperature alarm
Noise≤50dB
Power supply230V/110VAC50HZ/60HZ
Voltage220V/110V16W
Machine weight≈70kg
Filter system
Machine dimensions1080*585*320mm
Activated carbon filter cotton + silent fan + industrial-grade activated carbon brick
RF-Excited Laser Source
Operating Principle：Uses a 30V low-voltage power supply to generate laser through radio-frequency excitation.
Beam Quality：Produces a highly focused and refined laser spot—ideal for detailed engraving and precision cutting.
Lifespan:Over 20,000 hours (typically up to 6 years); gas can be refilled, reducing downtime and replacement needs.
Maintenance & Cost:Higher upfront cost but minimal maintenance and long lifespan make it highly cost-effective over time.
Cooling System：Air-cooled for long-term stability; eliminates risks and costs associated with water cooling
Glass Tube Laser
Operating Principle：High-voltage power excites the laser via electrodes within a sealed glass tube.
Cooling System：Requires a water-cooling system; performance is influenced by water quality and cooling stability.
Lifespan：Typically lasts 9,000–10,000 hours; replacement needed every 6–12 months under regular use.
Maintenance & Cost：Lower initial cost but requires regular tube replacement and water system maintenance.
