Joystick Gamepad for micro:bit
€25,00 incl. VAT
Joystick controller compatible with micro:bit.
Description

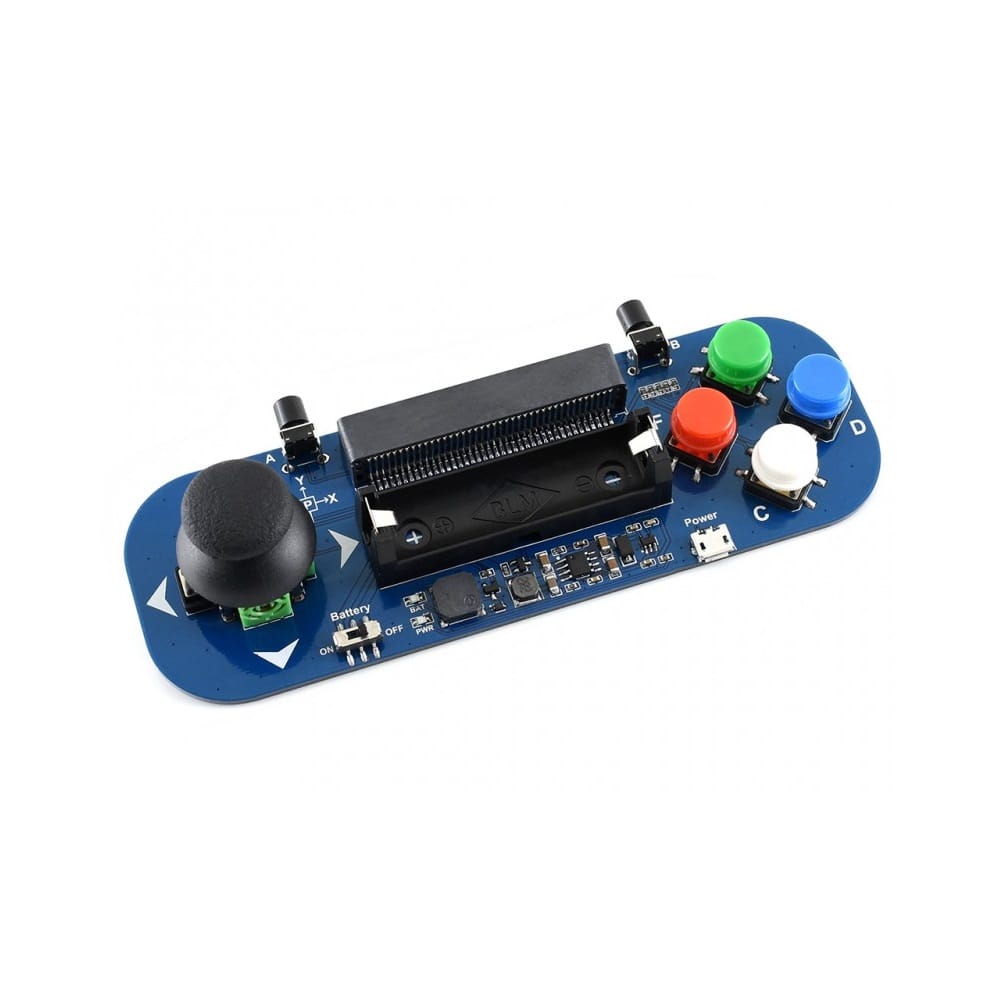

Joystick Gamepad for micro:bit
Joystick Gamepad for micro:bit
Overview

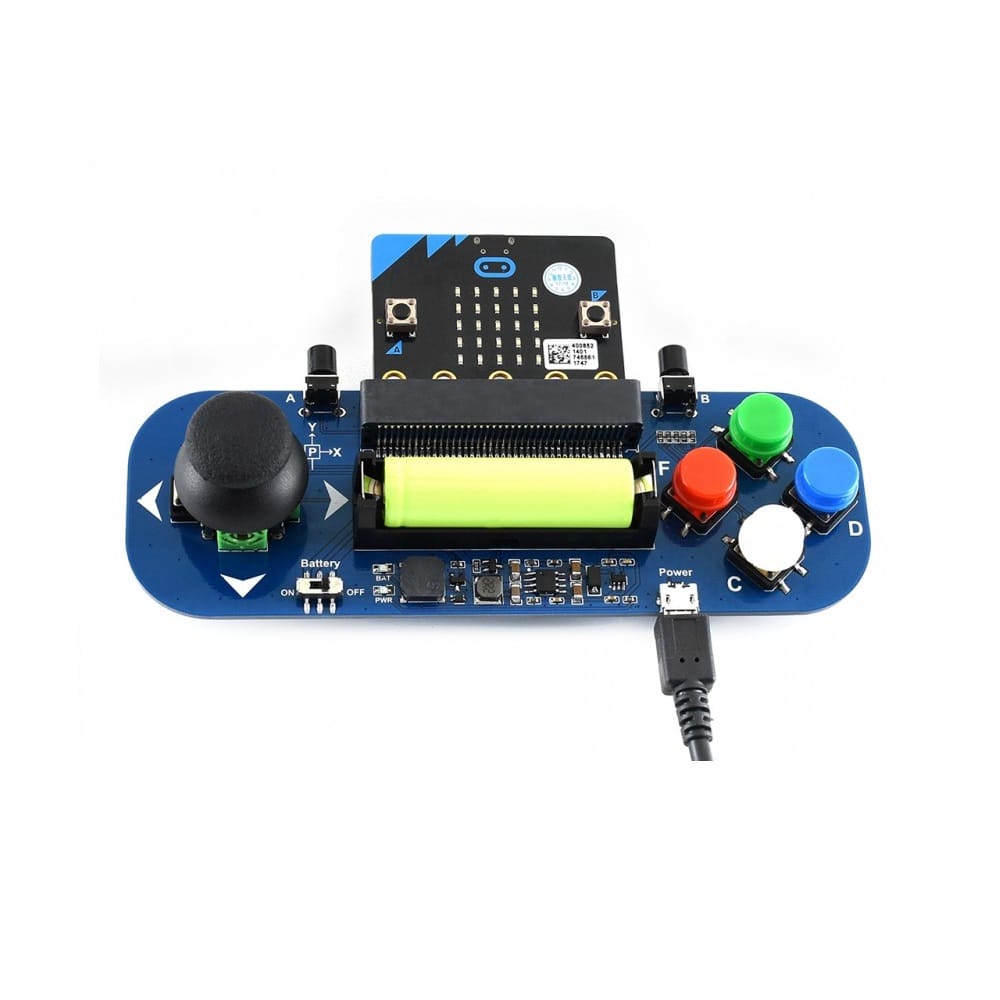

This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There’s onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.
Features
- micro:bit edge connector, directly pluggable
- High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
- Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
- Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
- 4x colorful buttons
- 2x side buttons, related to the A/B buttons of micro:bit, easy to use
- Buzzer for playing music and game background effect
- Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)
Specifications
- Operating voltage: 5V
- Battery type: 14500 Li-ion
- Dimension: 150mm x 50mm
Pinouts
| SYMBOL | PIN | DESCRIPTION |
|---|---|---|
| A | 5 | Button A |
| B | 11 | Button B |
| C | 15 | Button C |
| D | 14 | Button D |
| E | 13 | Button E |
| F | 12 | Button F |
| X | 1 | Joystick X axis |
| Y | 2 | Joystick Y axis |
| P | 8 | Joystick press |
| Buzzer | 0 | Buzzer |
Dimensions
Development Resources
