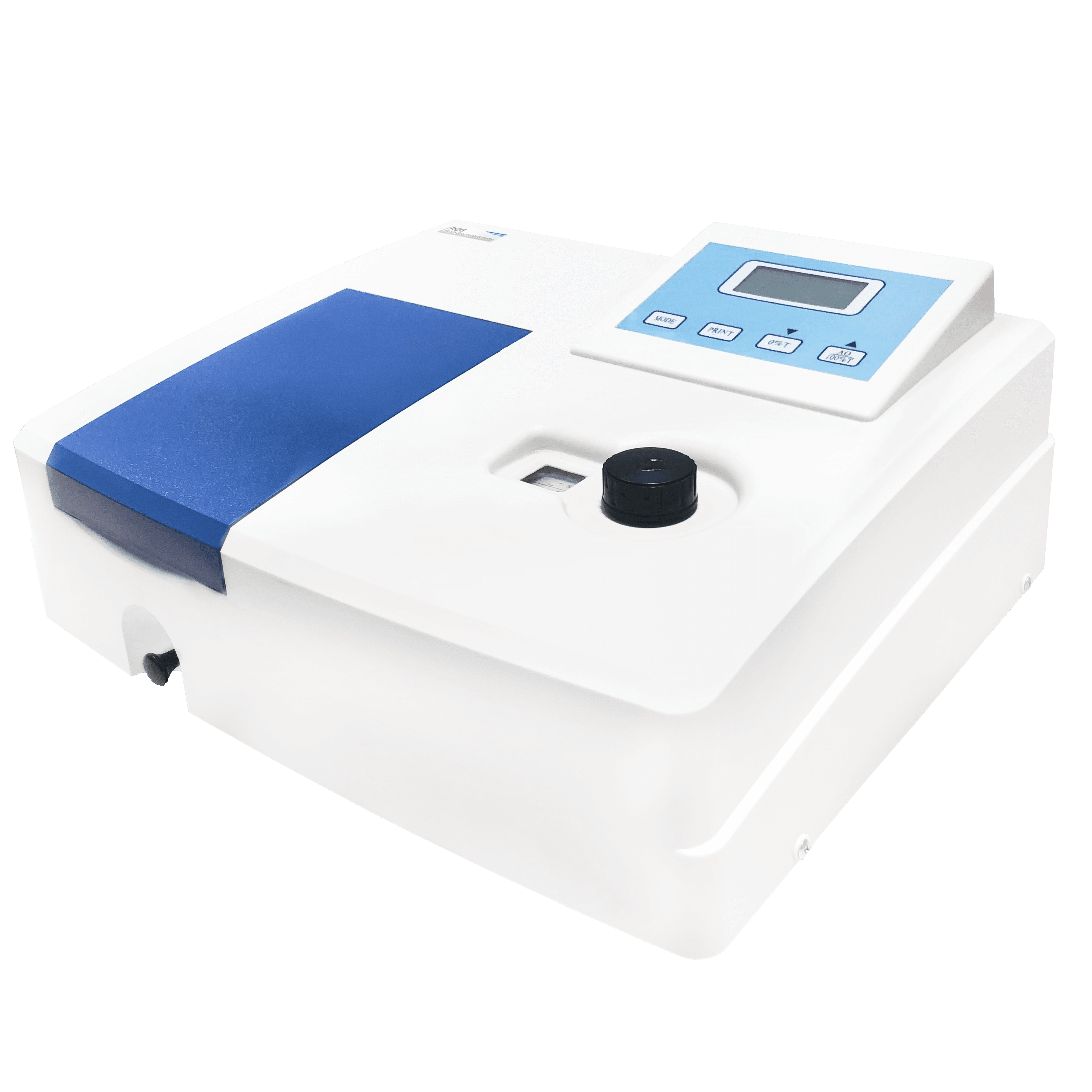

Spectrophotometer 721G

Spectrophotometer 721G

Spectrophotometer 721G

Technical Data:

Optical System: C-T Single Beam, diffraction grating 1200 lines/mm

Wavelength range : 350nm – 1020nm

Spectral bandwidth (nm): 6nm

Wavelength accuracy (nm): ±3nm

Wavelength Repeatability (nm): ≤1nm

Photometric Accuracy (T): ±1%

Photometric Repeatability (T): ±0.5%

Photometric Range : 0.0% – 200.0% T , -0.3A ~ 3A

Stray Light (T): ≤0.3% (@ 220nm , 340nm)

Stability (T): ± 0.004A/h @500nm

Display: 4 LCD

Photometric Mode: T, A, C

Detector: Silicon Photodiode

Light Source: Tungsten halogen lamp 12V / 20W (2000hrs)

Output: RS232 Port

Power Supply: AC 220V , 50Hz

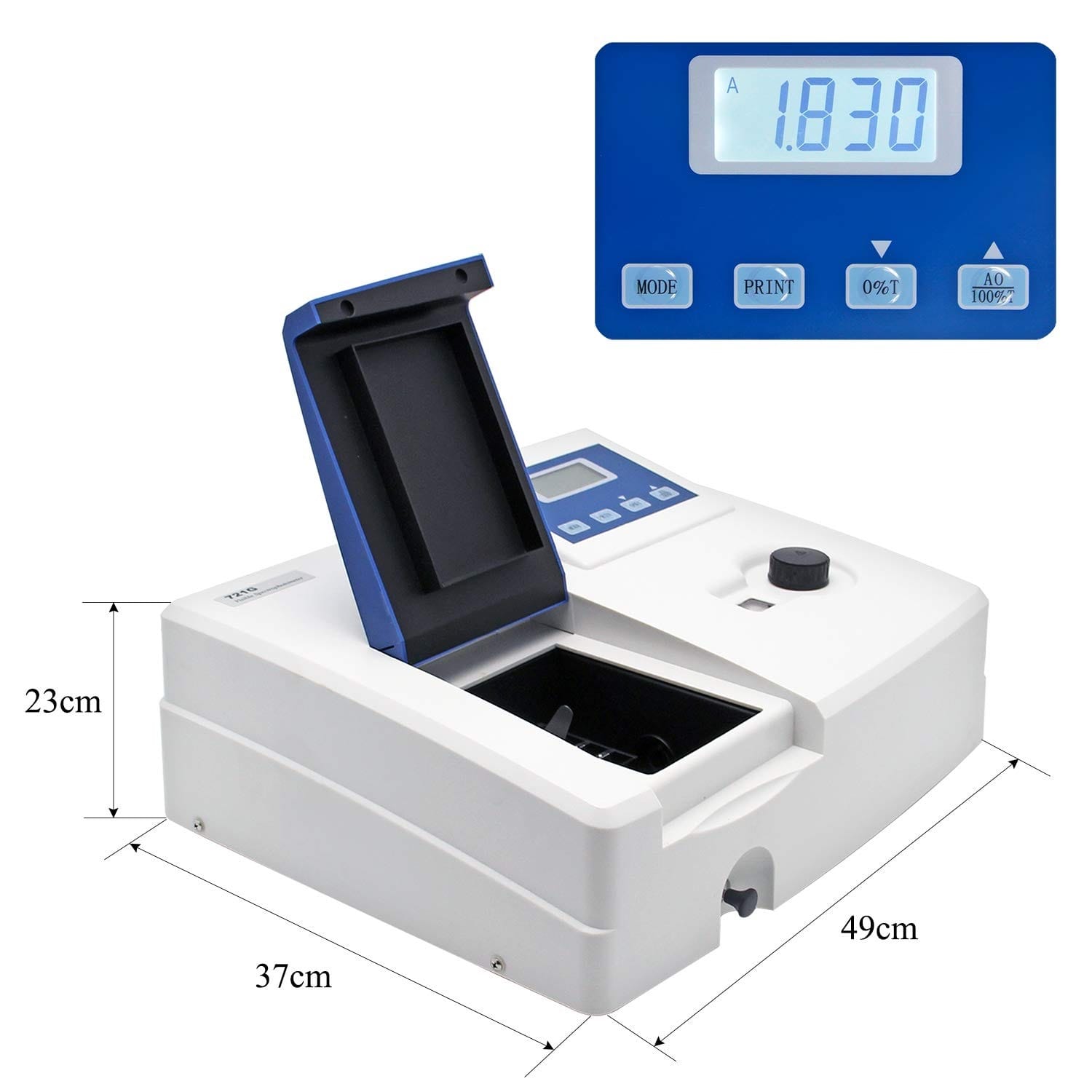

Dimensions: 450mm x 390mm x 210mm

Net Weight: 8kg
